Product Description

STOCK AND LEAD TIMES

We try our best to keep popular display options in stock. Call, email or message us for stock and availability.

Current lead time on custom dash mounts: 1 week.

DUE TO VERY HIGH DEMAND ON ALL DASH MOUNTS THERE IS A LEAD TIME FOR THIS PRODUCT TO BE MADE WHERE YOUR REQUIRED VERSION IS NOT IN STOCK.

Features:

  • Professionally finished in chip resistant 2K paint to remove the 3d printed finish
  • Installs in minutes!
  • Direct bolt-in install
  • No modifications required (except for very large displays mentioned below)
  • Made from high strength & heat resistant ABS plastic which can handle up to 105 degrees Celcius! More than the highest temperature your vehicle will experience in the harsh Australian summer.

How easy is it to install?

Installing a digital display in your vehicle has never been quicker and easier! Using our product, it's as simple as unscrewing your original instrument cluster and replacing it the same way with our dash mount!

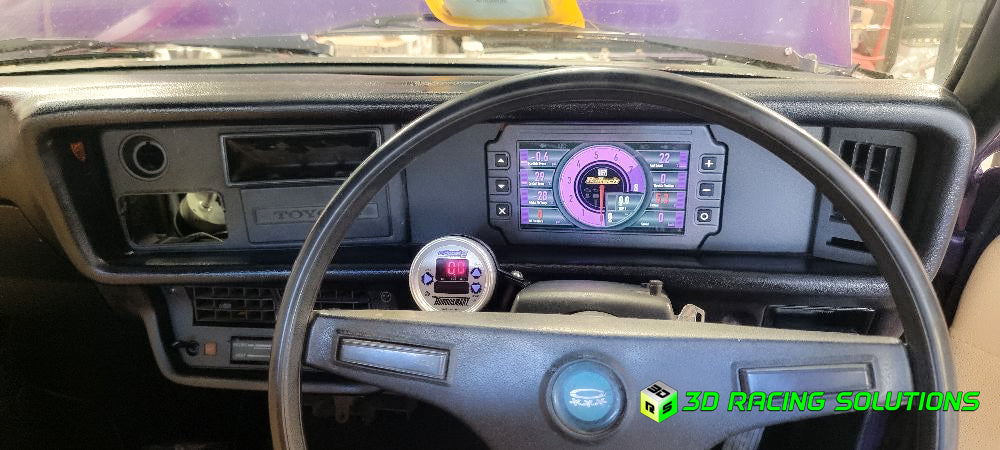

Simply remove your original instrument cluster, bolt-in your mount and wire up your new dash. The surrounding trim piece then screws back in place in front of the mount, leaving the display looking like factory-optioned upgrade.

This dash cluster replaces the original dash cluster in a quick and easy bolt-on fashion for a neat and flush install allowing a racing display to be fitted.

To install this product you will need the metal bracket from the original instrument cluster from the KE30 Corolla. This metal bracket is removed from the rear of the original instrument cluster by unscrewing the screws.

This metal mounting bracket is then screwed onto the rear of the 3D Racing Solutions dash mount in the same way it was removed from the original instrument cluster by using the same screws from the original instrument cluster.

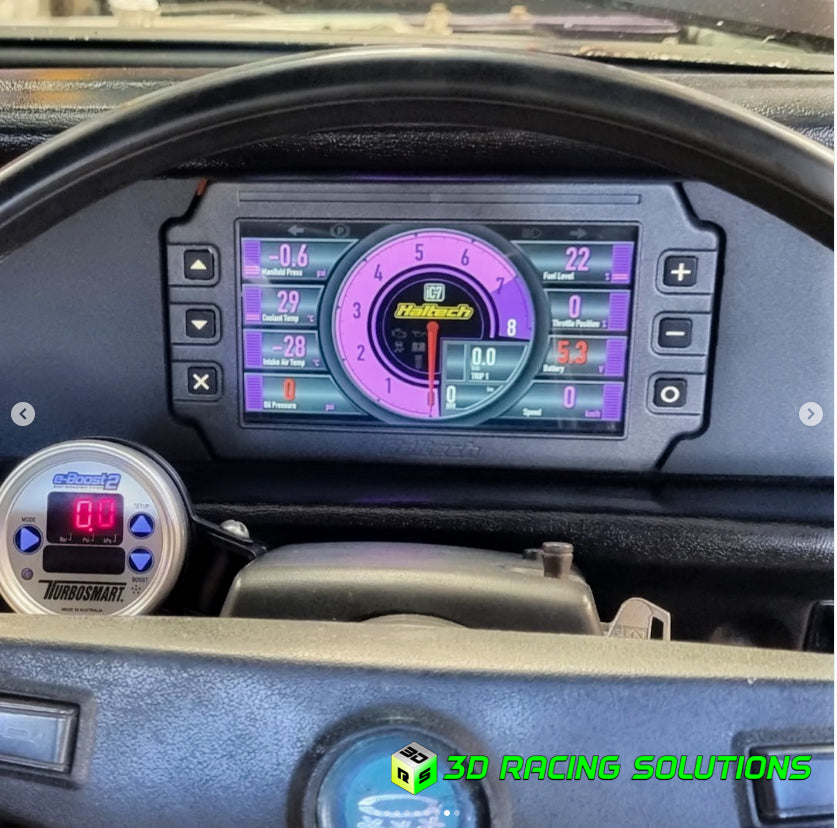

Larger display options (7" and larger) like the Haltech IC7 will require the metal bracket to be bent upwards a little bit to allow clearance for the larger digital display. This is an easy and minor modification that can be performed with basic tools.

All dash mounts are made so the digital display sits recessed. This means the screen sits flush with the surface of the dash mount, making it look neat and tidy.

Select your aftermarket display and we'll cut all the mounting holes for you perfectly everytime.

Need extra holes for switches, gauges or lights?

Installing aftermarket gauges, indicator lights, switches, etc.  You name it! Let us know and we can add the mounting holes exactly where you want them saving you the time and trouble. Send us an email, live chat with us or call us on the phone so we can make it happen for you. We're here to help.


    Most OEM vehicle plastics are also made from ABS plastic. Look on the back of an interior piece, you'll more than likely find it says the three letters we know all too well here at 3DRS, "ABS".

    Large digital displays including but not limited to the AiM MXG / Link MXG and AEM CD7/Emtron ED7 may require modification to the dash pad and/or dash shroud to fit and/or see the shift lights.

    A portion of the digital screen may be blocked on the AiM MXG / Link MXG, AEM CD7 and Emtron ED7.

    If you would like this cluster to be made for a different racing display or a different car (e.g. MoTec, AiM, AEM, etc.) please let us know through the ‘CONTACT US’ page or message us through Facebook: facebook.com/3dracingsolutions/



    What does the finished product look like?

    All dash clusters are 3D printed using high strength, heat resistant ABS plastic. Most major vehicle manufacturers use this plastic for their own vehicle interiors.

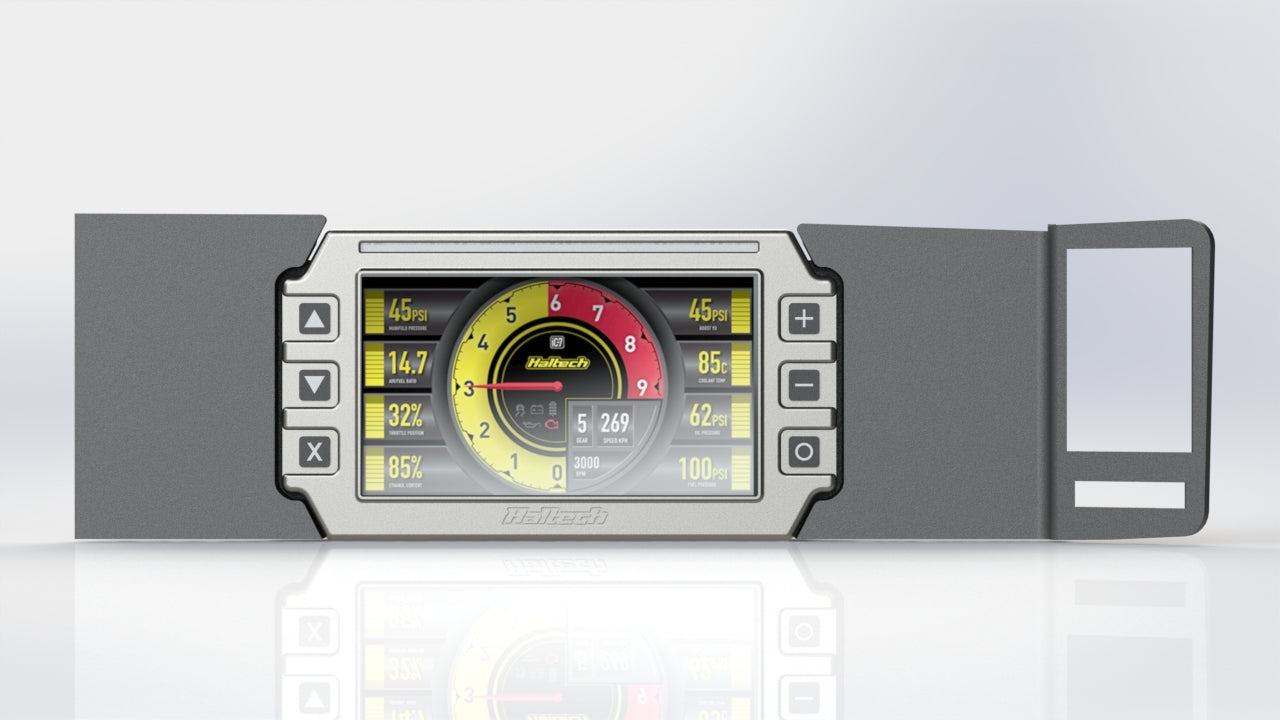

    Our products are put through a professional painting process to look OEM, finished in chip resistant 2K paint. The dash cluster in the image below is an example of the paint finish you can expect and may or may not be the specific dash cluster advertised on this page.



    Returns, Warranty & Cancellations

    For information on returns, warranty, cancellation fees and refunds please visit this page



    DIGITAL DISPLAY NOT INCLUDED
